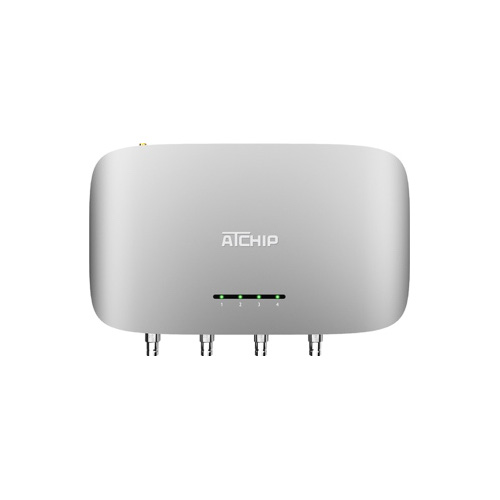

  • Four-port UHF Reader AT-FR800

  • Four-port UHF Reader AT-FR800

    The AT-FR800 is designed for industrial environments, equipped with a quad-core 64-bit Cortex-A55processor with a main frequency of2.0GHz, and 4GB RAM+32GB ROM. It provides powerful computing capabilities.  Using Guoxin IoT's third-generation X3Ml RFID solution, it's fully compatible with EPCC1G2, IS018000-6B/C, and other protocols.  It supports RSSI and tag incidence angle phase detection for more accurate identification.  The port supports a maximum transmission power of 36dBm, with a receiving sensitivity as high as -86dBm.  It integrates Al for tag signal data processing, capable of reading800 tags per second, ensuring precise and efficient operation.

    The AT-FR800 is equipped with Ethernet, RS-232, RS-485, USB DEVICE, and Wiegand interfaces.  It also has built-in dual-band Wi-Fi and Bluetooth, supports PoE power supply, ensuring stable transmission and flexible networking.  The IP55-rated full aluminum casting housing is dustproof and waterproof, suitable for harsh environments ranging from -40°C to +859C.  It's suitable for warehousing logistics, production manufacturing, access control management, asset management, and other fields, providing efficient and stable RFID solutions.


    • 0.00
      0.00
Product Description

The AT-FR800 is designed for industrial environments, equipped with a quad-core 64-bit Cortex-A55processor with a main frequency of2.0GHz, and 4GB RAM+32GB ROM. It provides powerful computing capabilities.  Using Guoxin IoT's third-generation X3Ml RFID solution, it's fully compatible with EPCC1G2, IS018000-6B/C, and other protocols.  It supports RSSI and tag incidence angle phase detection for more accurate identification.  The port supports a maximum transmission power of 36dBm, with a receiving sensitivity as high as -86dBm.  It integrates Al for tag signal data processing, capable of reading800 tags per second, ensuring precise and efficient operation.

The AT-FR800 is equipped with Ethernet, RS-232, RS-485, USB DEVICE, and Wiegand interfaces.  It also has built-in dual-band Wi-Fi and Bluetooth, supports PoE power supply, ensuring stable transmission and flexible networking.  The IP55-rated full aluminum casting housing is dustproof and waterproof, suitable for harsh environments ranging from -40°C to +859C.  It's suitable for warehousing logistics, production manufacturing, access control management, asset management, and other fields, providing efficient and stable RFID solutions.
